Wheel 7,5-20 K

RZB35642OE

Wheels with 5° bead seat for trucks, buses, semi-trailers, trailers

Wheels Size 7,5-20

Drawing No. 65115-3101012-50

SAP code RZB35642OE

Applicability trucks

Send request

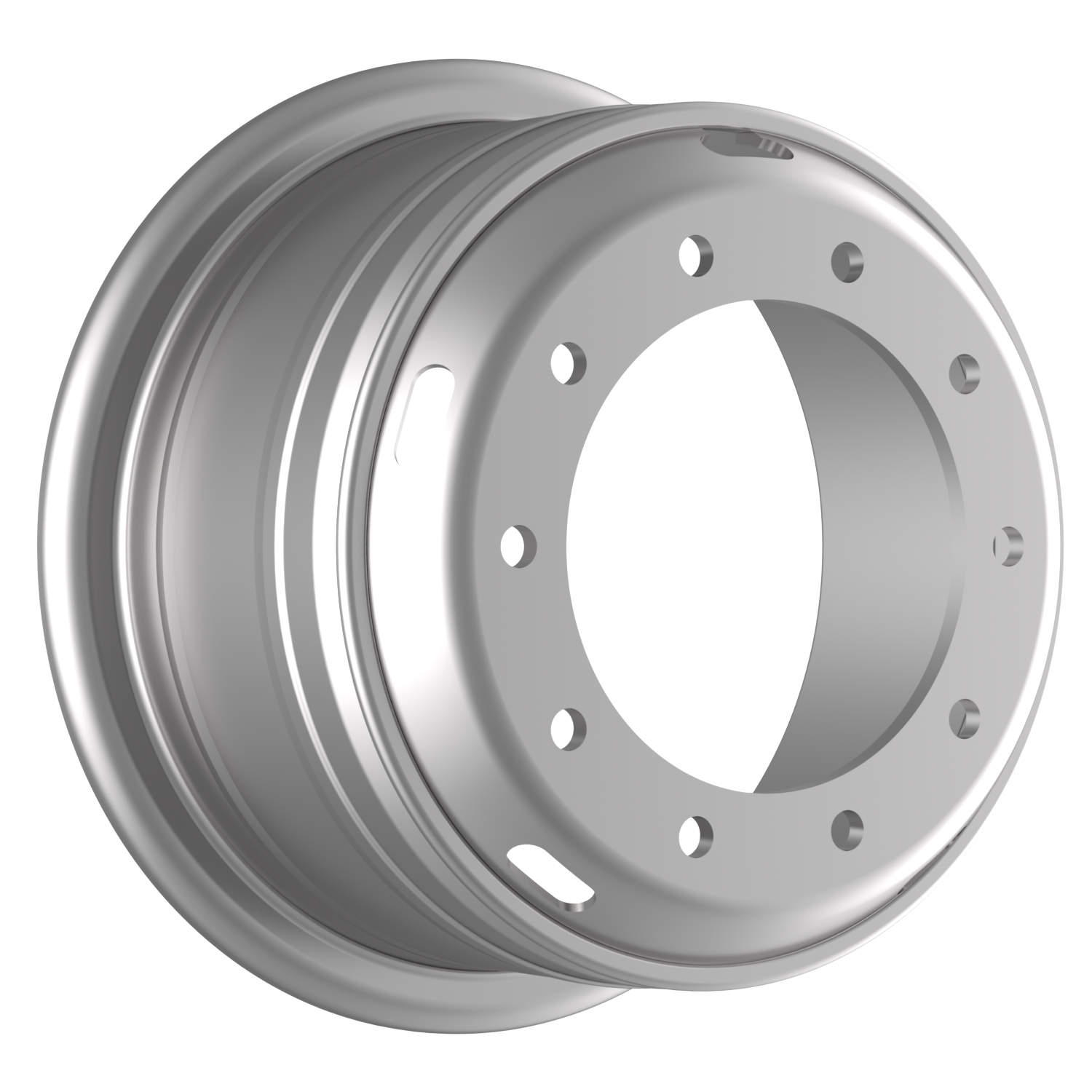

*Actual product may differ from image shown

Wheel characteristics

Production Zainsk

Wheels Size (E&F) 7,5-20

Bolt Hole No. 10

Bolt Circle, mm (A) 335

Center hole diameter, mm (B) 281

EUWA М22

Bolt holes diameter, mm (D) 26

HMA, mm (G1) 162

ET, mm (G2) 151.4

Max. load (kg) 3250

Disc thickness, mm (C) 10.6

Wheel material steel

Drawing No. 65115-3101012-50

Applicability trucks

Packing PCs 20

Alignment type CH

Wheel weight, kg 45.9

Valve -

Permissable tire sizes 10R20

Version black RZB35642OE-NC0C000

Dimensions (w*l*h, mm) 508*508*191
