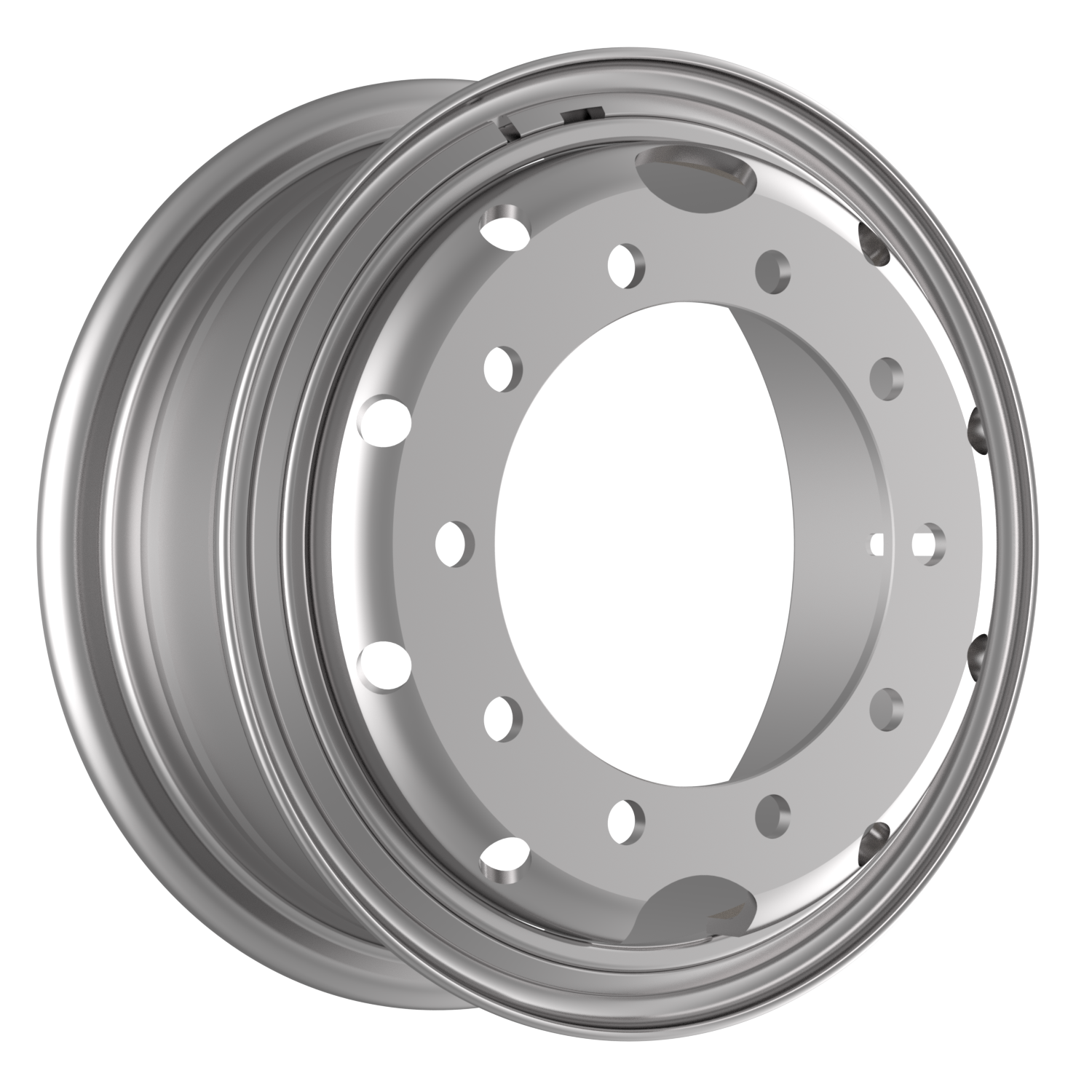

Wheel 7,0-20 K

RZB35641OE

Wheels with 5° bead seat for trucks, buses, semi-trailers, trailers

Wheels Size 7,0-20

Drawing No. 55-П130-3101012

SAP code RZB35641OE

Applicability futor trucks.

Send request

*Actual product may differ from image shown

Wheel characteristics

Production Zainsk

Wheels Size (E&F) 7,0-20

Bolt Hole No. 8

Bolt Circle, mm (A) 275

Center hole diameter, mm (B) 214

EUWA B20DS44

Bolt holes diameter, mm (D) 32

HMA, mm (G1) 155

ET, mm (G2) 144

Max. load (kg) 2030

Disc thickness, mm (C) 11

Wheel material steel

Drawing No. 55-П130-3101012

Applicability futor trucks.

Packing PCs 24

Alignment type BH

Wheel weight, kg 37.2

Valve -

Permissable tire sizes 9R20;260-508R

Version black RZB35641OE-NC0A000

Dimensions (w*l*h, mm) 508*508*178
