Wheel 22,5х8,25 S/V

RZB35705OE

Tubless wheels with 15° bead seats for trucks, buses, semi-trailers, trailers

Wheels Size 22.5 х 8.25

Drawing No. 374-3101012-01

SAP code RZB35705OE

Applicability trucks, buses

Send request

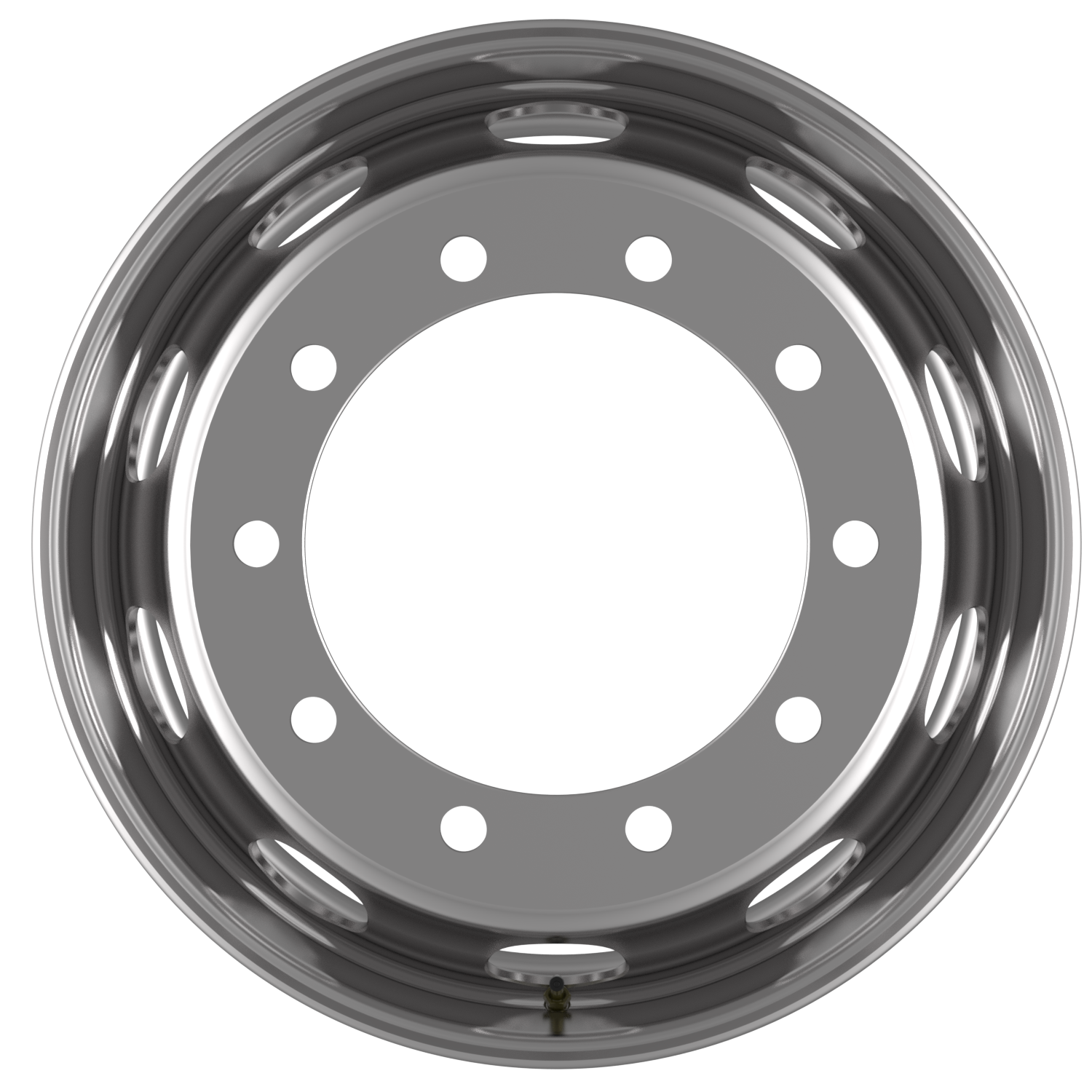

*Actual product may differ from image shown

Wheel characteristics

Production Zainsk

Wheels Size (E&F) 22.5 х 8.25

Bolt Hole No. 10

Bolt Circle, mm (A) 335

Center hole diameter, mm (B) 281

EUWA М22

Bolt holes diameter, mm (D) 26

HMA, mm (G1) 162

ET, mm (G2) 150

Max. load (kg) 3550

Disc thickness, mm (C) 12

Wheel material steel

Drawing No. 374-3101012-01

Applicability trucks, buses

Packing PCs 20

Alignment type CH

Wheel weight, kg 44.1

Valve V3.22.1

Permissable tire sizes 295/80R22,5

Version silver RZB35705OE-HB0A200

Dimensions (w*l*h, mm) 572*572*210
