Wheel 22,5х8,25 ALV S/V

RZB36374OE

Tubless wheels with 15° bead seats for trucks, buses, semi-trailers, trailers

Wheels Size 22.5 х 8.25

Drawing No. RZB36374OE

SAP code RZB36374OE

Applicability ISUZU, foreign car buses

Send request

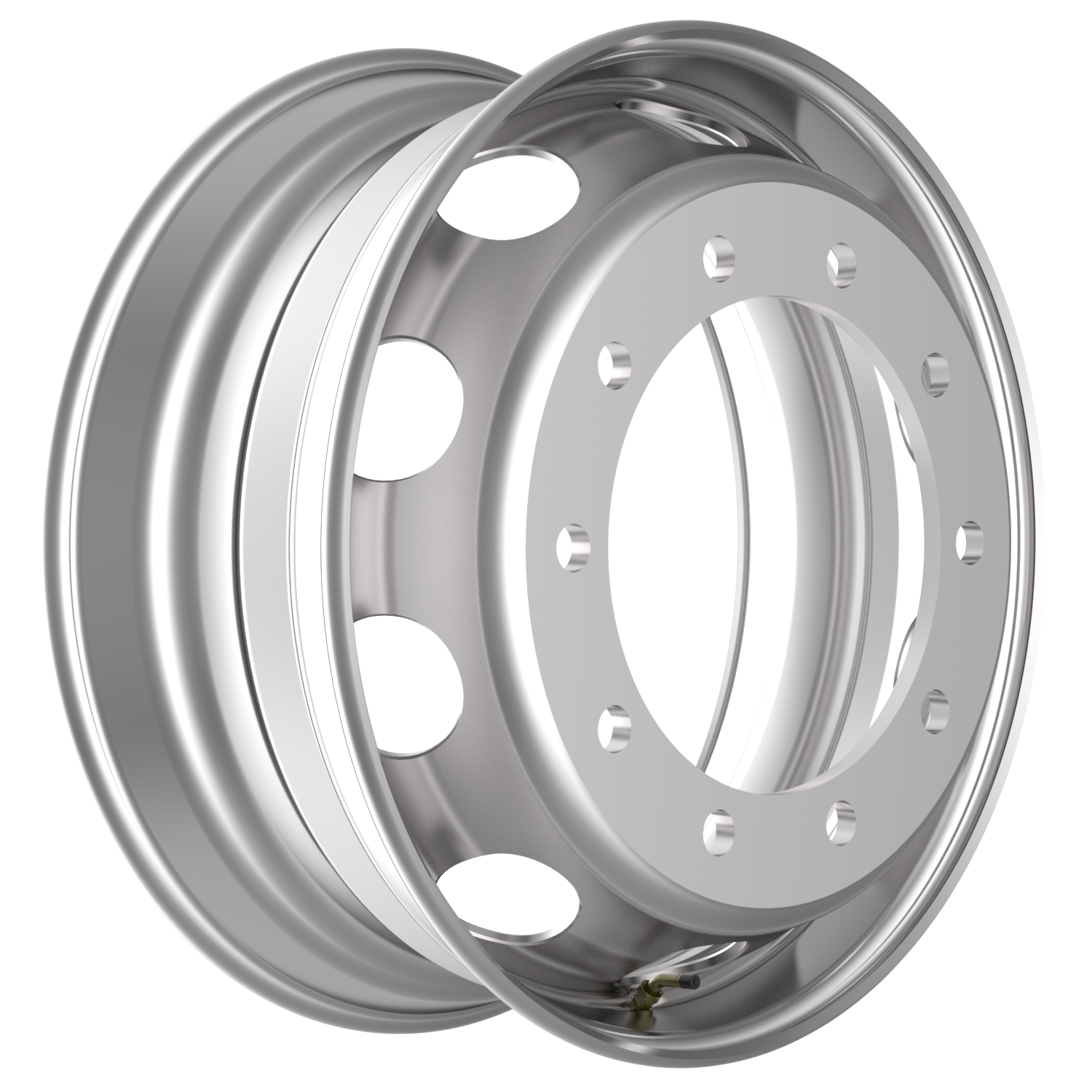

*Actual product may differ from image shown

Wheel characteristics

Production Zainsk

Wheels Size (E&F) 22.5 х 8.25

Bolt Hole No. 10

Bolt Circle, mm (A) 335

Center hole diameter, mm (B) 281

EUWA М22

Bolt holes diameter, mm (D) 26

HMA, mm (G1) 165

ET, mm (G2) 152.5

Max. load (kg) 3550

Disc thickness, mm (C) 12.5

Wheel material steel

Drawing No. RZB36374OE

Applicability ISUZU, foreign car buses

Packing PCs 20

Alignment type CH

Wheel weight, kg 35.2

Valve V3.22.1

Permissable tire sizes 295/80R22,5

Version silver RZB36374OE-HB0B200

Dimensions (w*l*h, mm) 572*572*210
