Wheel 19,5х6,75 S/V

RZB35654OE

Tubless wheels with 15° bead seats for trucks, buses, semi-trailers, trailers

Wheels Size 19.5 х 6.75

Drawing No. 195-3101012-01

SAP code RZB35654OE

Applicability trucks, foreign cars

Send request

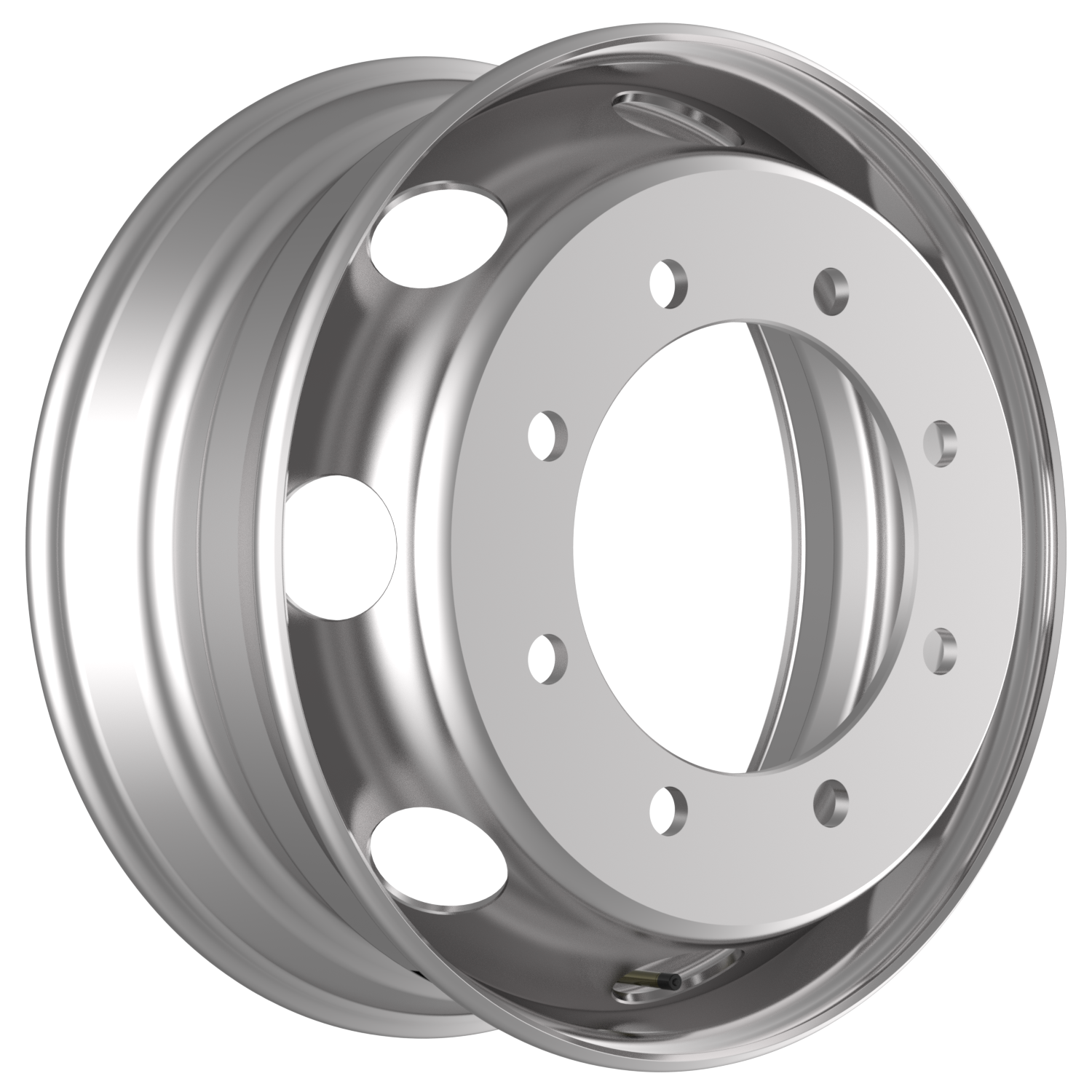

*Actual product may differ from image shown

Wheel characteristics

Production Zainsk

Wheels Size (E&F) 19.5 х 6.75

Bolt Hole No. 8

Bolt Circle, mm (A) 275

Center hole diameter, mm (B) 221

EUWA М20

Bolt holes diameter, mm (D) 24

HMA, mm (G1) 146.5

ET, mm (G2) 136

Max. load (kg) 2500

Disc thickness, mm (C) 10.5

Wheel material steel

Drawing No. 195-3101012-01

Applicability trucks, foreign cars

Packing PCs 20

Alignment type CH

Wheel weight, kg 26

Valve АБ-95/V3.20.4

Permissable tire sizes 245/70R19,5

Version silver RZB35654OE-HB0B200

Dimensions (w*l*h, mm) 496*496*172
