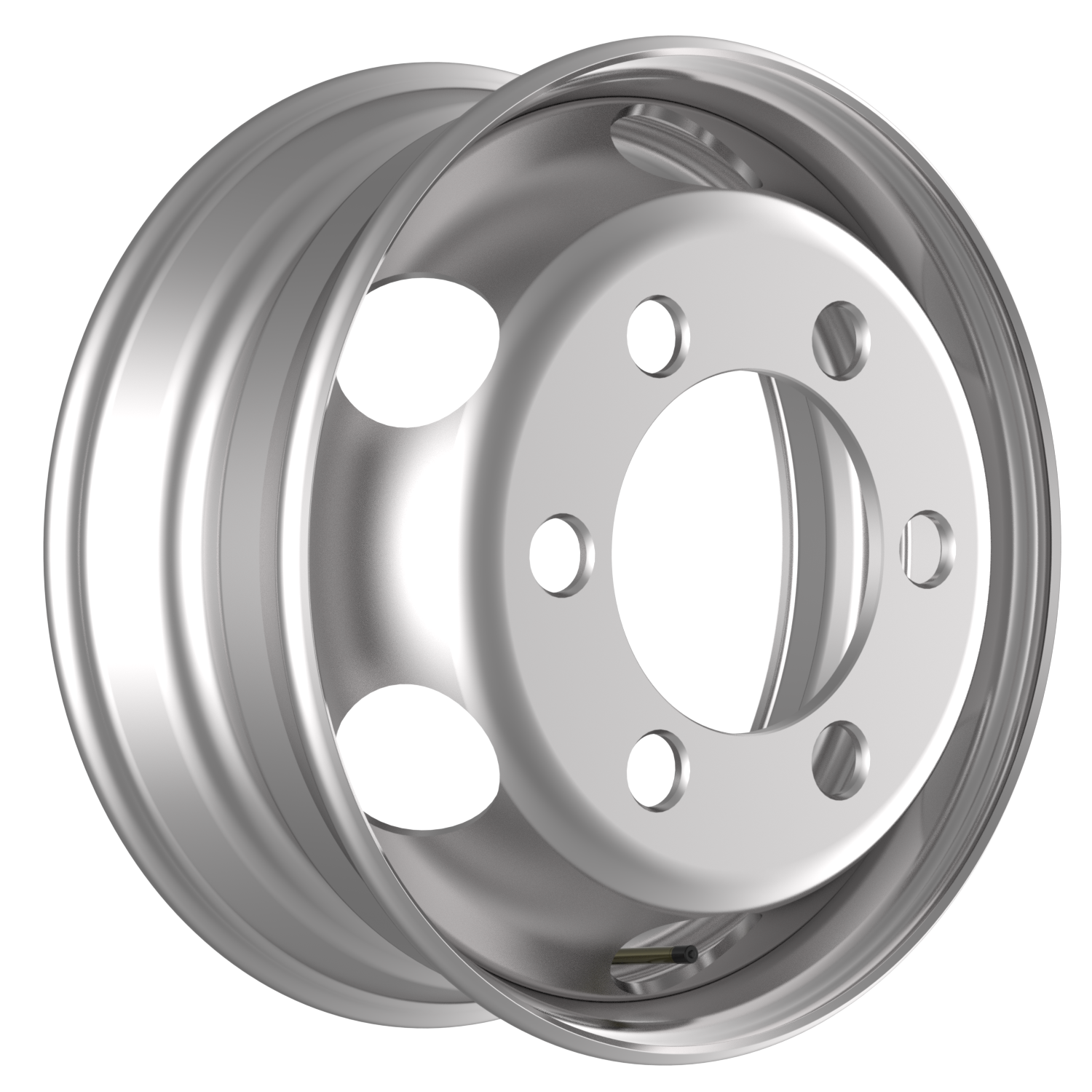

Wheel 17,5х6,75 S/V

RZB35693OE

Tubless wheels with 15° bead seats for trucks, buses, semi-trailers, trailers

Wheels Size 17.5 х 6.00

Drawing No. 356-3101012-01

SAP code RZB35693OE

Applicability ISUZU,HINO,Hyundai

Send request

*Actual product may differ from image shown

Wheel characteristics

Production Zainsk

Wheels Size (E&F) 17.5 х 6.00

Bolt Hole No. 6

Bolt Circle, mm (A) 222.25

Center hole diameter, mm (B) 164

EUWA B22DS44

Bolt holes diameter, mm (D) 32/37

HMA, mm (G1) 135.7

ET, mm (G2) 127

Max. load (kg) 1800

Disc thickness, mm (C) 8.7

Wheel material steel

Drawing No. 356-3101012-01

Applicability ISUZU,HINO,Hyundai

Packing PCs 20

Alignment type BH

Wheel weight, kg 19.64

Valve АБ-95/V3.20.2

Permissable tire sizes 205/75R17,5

Version silver RZB35693OE-HB0A200

Dimensions (w*l*h, mm) 445*445*153
