Wheel 533-310 K

RZB35646KM

Wheels with air pressure regulated in tyre for trucks

Wheels Size 310-533 (12.0-21)

Drawing No. 43118-3101012

SAP code RZB35646KM

Applicability trucks

Send request

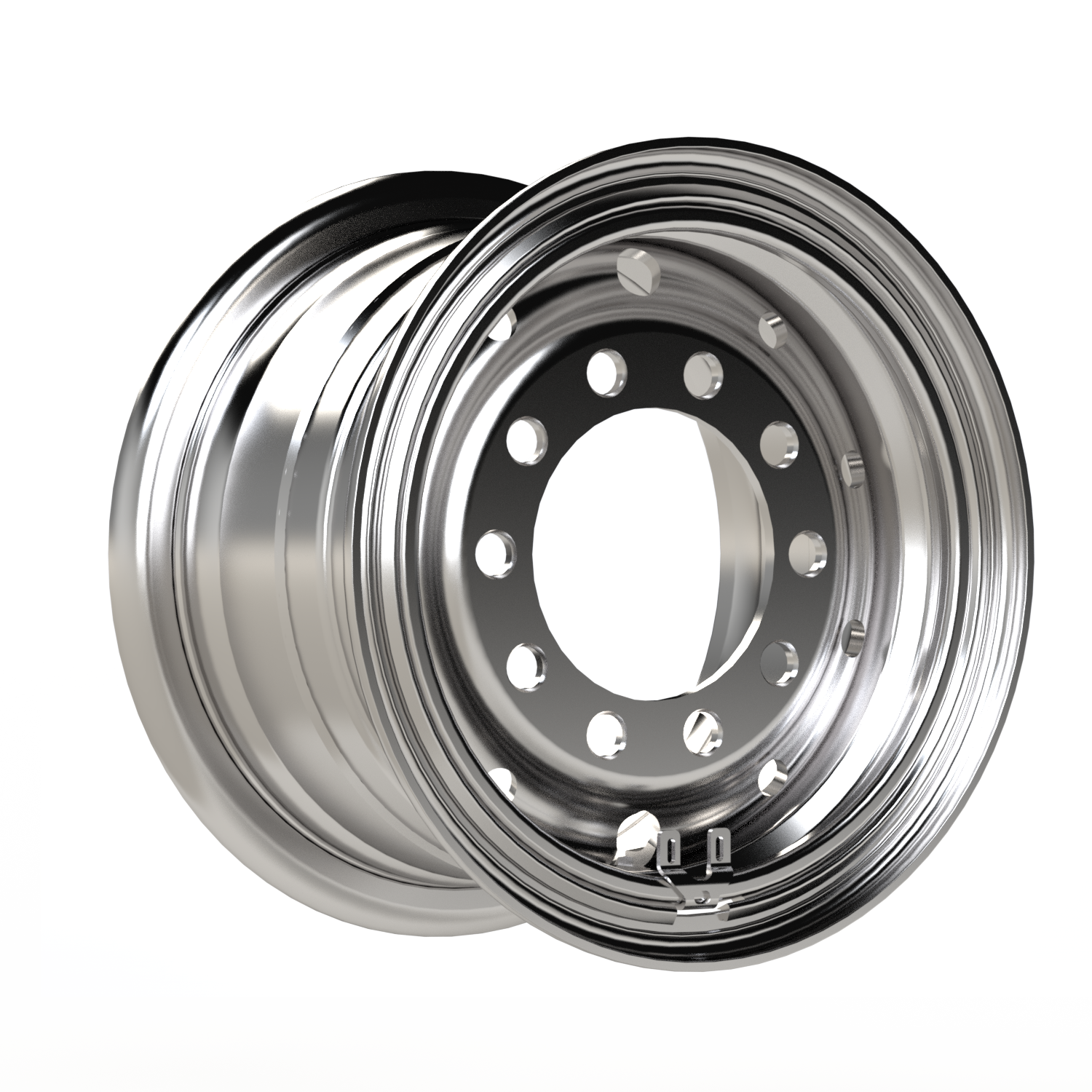

*Actual product may differ from image shown

Wheel characteristics

Production Zainsk

Wheels Size (E&F) 310-533 (12.0-21)

Bolt Hole No. 10

Bolt Circle, mm (A) 286

Center hole diameter, mm (B) 222

EUWA M28DS37

Bolt holes diameter, mm (D) 32/37

HMA, mm (G1) -

ET, mm (G2) 100

Max. load (kg) 4000

Disc thickness, mm (C) 11,5

Wheel material steel

Drawing No. 43118-3101012

Applicability trucks

Packing PCs 16

Alignment type BH

Wheel weight, kg 57.54

Valve -

Permissable tire sizes 1200*400-533;425/85R21

Version black RZB35646KM-NC0AG00

Dimensions (w*l*h, mm) 533*533*310
